⚙️ Unleash Pro-Level Power in Your DIY Projects!
The 775 DC Motor is a high-speed, large-torque gear motor operating at 12-24V with speeds ranging from 7500 to 15000 RPM. Designed for a wide range of applications including electric tools, e-bikes, and car wash pumps, it features a compact 95x42mm size, 5mm shaft diameter, and low noise operation. The package includes a motor bracket, fixing screws, and a protective cover, backed by a 1-year warranty—perfect for professionals and enthusiasts seeking reliable, powerful performance.
| ASIN | B08TTYTHQ5 |
| Best Sellers Rank | #212,808 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #343 in Electric Fan Motors |
| Brand | LJJDSLYU |
| Date First Available | January 23, 2021 |
| Horsepower | 60 Watts |
| Item Weight | 12 ounces |
| Item model number | 775 |
| Manufacturer | Hechengdianzi |
| Material | Alloy Steel |
| Model Name | gear |
| Product Dimensions | 2.62 x 1.65 x 1.65 inches |
| Shaft Diameter | 5 Millimeters |
| Speed | 15000 RPM |
| UPC | 192236389100 |
| Voltage | 24 Volts |
A**R
So far so good
So far so good. I replaced a motor in a 20b craftsman pole chain saw. Seemed to run a little slow but cut fine. The owner said it seemed similar to how it worked previously.
R**N
Great motor.
Great motor. Great torque. Use a variable dc power supply to control the speed.
T**.
Standard 775 DC motor...
This motor is a workhorse. The mount and endcap both provide exactly what I needed for my application. This fan is controllable by how much voltage you supply to it. I was surprised that under the load I have it under it spins an average of 8.18 rps (491 rpm) drawing very little current at 1.5V. I've even powered it up to 24V and 48V and it flies. Very stable and had a lot of torque.
D**K
Fantastic motor!
The motor is perfect, however the machine screws to attach it to the bracket weren't snug and I had to use others; otherwise it would be a 5 star review. Definitely recommended if you need a good motor with these specs, just don't be surprised if you need 2 other screws to mount it to the bracket.
S**P
Nice motor

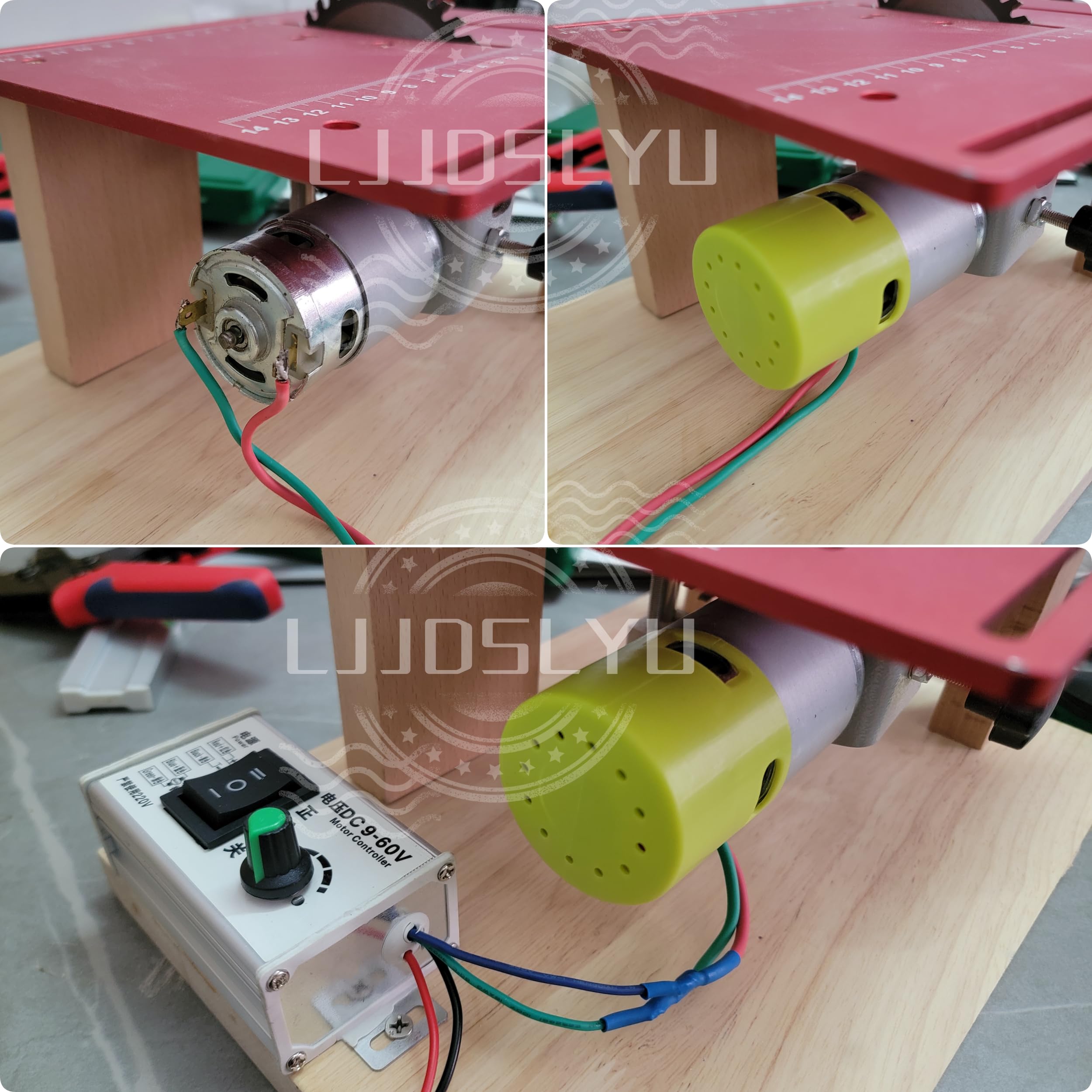

Used in a sub miniature metal lathe and this motor has plenty of power/torque.
A**R
Tough
Runs good so far no problems
R**W
Good
Fit where I needed it
A**O
It's really useful stuff for build a small electric generator
I haven't tested this DC brushed electric motor, not the brushless electric motor, there's no cable connector for at least three hall sensors, if this electric Dc motor is the brushless electric motor.
