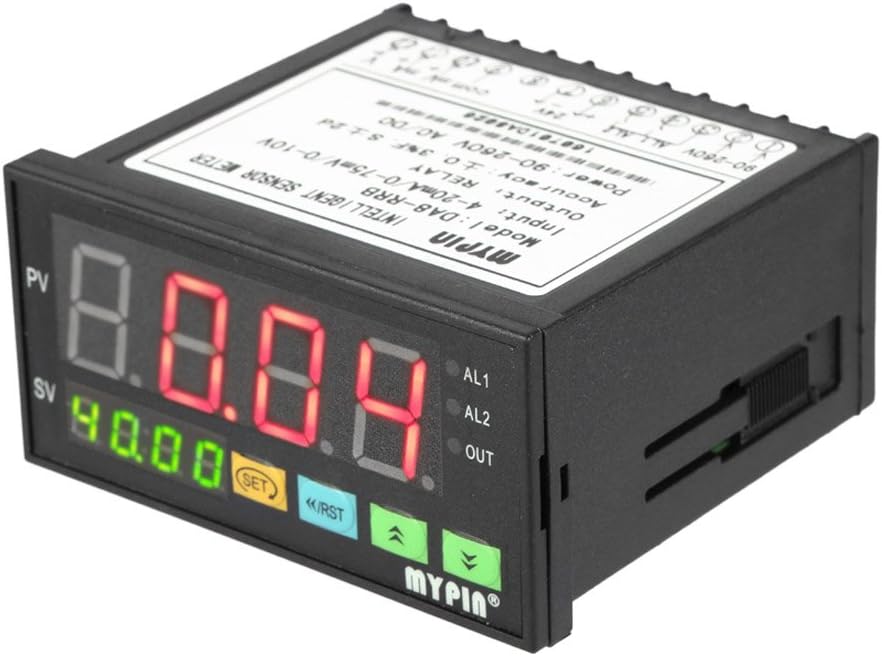

Onepeak Digital Sensor Meter Multi-functional Intelligent Pressure Transmitters LED 0-75mV/4-20mA/0-10V 2 Relay Alarm Output
Description
- Function: This multi-functional sensor meter can measure Current or Voltage signal input in the range of 0-75mV/4-20mA/0-10V
- Compatibility: sensor meter can be used with 2-wire transformer, pressure sensor, 4-wire weighing sensor, remote pressure meter resistance transmitters, potentiometers, transducers and other sensor measuring devices
- LCD Screen: The intelligent pressure transmitters comes with a 4-digit LED display for clear measurement readings
- Precise measurement: The sampling rate for measurement input is 10 measurements per second. High precision, stable performance and easy operation
- Material: Made of ABS plastics, the multi-functional sensor meter is lightweight, sturdy and durable to use
- ›See more product details
Description:High precision, stable performance and easy operation.The sampling rate for measurement input is 10 measurements per second.4-digit LED display for clear measurement readings.Input signal: 4-20mA, 0-10V, 0-75mV.It can be used with transmitter, pressure sensor, liquid level sensor, weighing sensor and so on.This multi-functional sensor meter can measure Current or Voltage signal input in the range of 0-75mV/4-20mA/0-10V.Specifications:Model: DA8-RRB.Material: ABS.Size: 48*48*80mm.Hole Size: 45 * 91mm.Color: show as pictures.Power Supply: 90-265V AC/DC.Auxiliary Power Supply: 24V DC.Power Consumption: <3W.Accuracy: 0.3%F.S2dgt.Sampling Rate: ≤8 times/second.Input: 4-20mA, 0-10V, 0-75mV.Analog Output: 4-20mA.Notes:Due to the light and screen setting difference, the item's color may be slightly different from the pictures.Please allow slight dimension difference due to different manual measurement.Package include:1 * Universal Sensor Meter.2 * Bracket.1 * User Manual.
