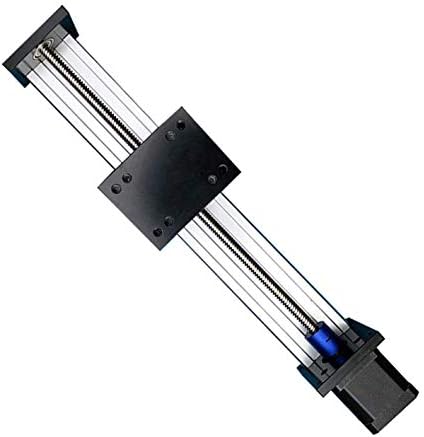

tanstool ball screw trapezoidal CNC linear actuator aluminum alloy table slide with 17NEMA stepper motor effective range 500mm MTK T8*2 series

Description

Colour Name:Voyage efficace：500mm  |  Material Type:Type à Vis à billes trapézoïdale : T8*2 Product prices include shipping, customs clearance and import duties. (In the UK) Specifications Brand: tanstool Product Type: Single Axis Trapezoidal Ball Screw Linear System Module Main material: aluminum alloy + carbon steel Type trapezoidal ball screw: T8 * 2 Trapezoidal ball screw positioning accuracy: ≧0.1mm Maximum horizontal speed: 0mm / s~20mm / s (when used with stepper motor) Lead: 2mm Horizontal load: ≤20kg Vertical load: ≤8kg (When you need to use it vertically, you need to add a brake to the motor, Please contact us before placing an order. ) Effective stroke (excluding cursor length): 500mm (To protect the machine, there is a margin of 10mm. In fact, it can run about 510mm, If you do not need a surplus, please be sure to contact us in advance. 17 NEMA 42 Stepper Motor Data Type: 2 phase 4 line Step angle: 1.8° Step accuracy: ±5% Rated voltage: 5.2V Phase current: 1.5A / PHASE Phase resistance: 3.1 ± 10% Ω / PHASE Phase inductance: 5.0±10%mH / PHASE Static torque: 0.5N.m Weight: about 0.35kg Temperature rise: 85K Max Working temperature: -20 ° C ~ + 50 ° C Insulation class: Class B Insulation resistance: 500VDC100MΩMin Insulation strength: 500VAC 50Hz 1mA Min The above parameters are theoretical values and may not reach the peak depending on the actual situation. If you don't know if the product is suitable, please contact us before purchasing. Click Package includes: 1 * T8 * 2 trapezoidal ball screw with 17Nema stepper motor linear module system
