Question 1

Sti release a newly redesigned exit stopper door alarm on april 2018.   is this the newer version?

Accepted Answer

The newer version STI-6400 2018 to current will have a red table of 8 switches, older models have switches labelled JP

Question 2

How is it installed?

Accepted Answer

Simple, just mount the magnet on the door frame and the main unit onto the doo.  When properly mounted and key switch is turned on, the opening of the door will pull the unit away from the magnet that then releases the internal read switch causing the siren to alert. MOUNTINGH:  Close the door then mount the magnet on the inside door frame at the opposite side of the hinges (opening).  Depending on the conditions, locate the magnet either at the top or side of the door frame near the door's surface but do allow a slight distance from the actual door surface so that it doesn't stop the door from closing.  Once it is mounted you will mount the main unit onto the actual door putting the read switch side of the unit so it is very close and lined-up evenly with the top of the magnet's surface.  You will need to disassemble the unit so as to mount the unit to the door as well as to insert or change the battery.  There are two types of keys for this unit, the metal type key has a fork end on it that fits into the screw head that holds unit together.  The gold keys (two) are used to turn on or shut off the unit.    You will need to have this gold key available to turn-off the unit or to turn on the unit.

Question 3

Alarm goes off even when key is off. What am I doing wrong?

Accepted Answer

Thank you for reaching out to STI.  Unit should not sound after key has been turned to the horizontal "off" position.  If this is happening you may want to check the key switch wires are still in the key switch terminal.  For further discussion on this please contact me direct Tasha/STI Tech Support/ 800-888-4784 x213.  Best Regards.

Question 4

Can I order extra keys? We use these in a dorm each summer for a camp and we have lost ours.

Accepted Answer

I had to order a new one to get the key.

ASIN	B0006AZDII
ASIN	B0006AZDII
Audible Noise	105 Decibels
Batteries	1 9V batteries required. (included)
Battery Description	Alkaline
Best Sellers Rank	#45,312 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #50 in Home Alarm Systems
Brand	STI
Built-In Media	9V Battery, Door Alarm, Reed/Magnet
Color	Red
Control Method	Touch
Country of Origin	China
Country of origin	China
Customer Reviews	4.6 4.6 out of 5 stars (503)
Customer reviews	4.6 4.6 out of 5 stars (503)
Date First Available	11 August 2012
Department	Safety Hardware
EU Spare Part Availability Duration	3 Years
Global Trade Identification Number	00662950640004
Is Discontinued By Manufacturer	No
Item Dimensions L x W x H	17.3L x 6.9W x 1H centimeters
Item Type Name	Door Alarm
Item model number	STI-6400
Manufacturer	Safety Technology Intl
Manufacturer	Safety Technology Intl
Mfr Part Number	STI-6400
Model Number	STI-6400
Mounting Type	Door Mount
Number of Batteries	1 9V batteries required. (included)
Number of Items	1
Number of Packs	1
Power Source	Battery Powered
Product Dimensions	6.8 x 2.7 x 0.01 cm; 440 g
Sensor Technology	Contact Sensor
Size	1 Pack
UPC	662950640011 737214686613 662950640004
Unit Count	1 Count
Voltage	9 Volts

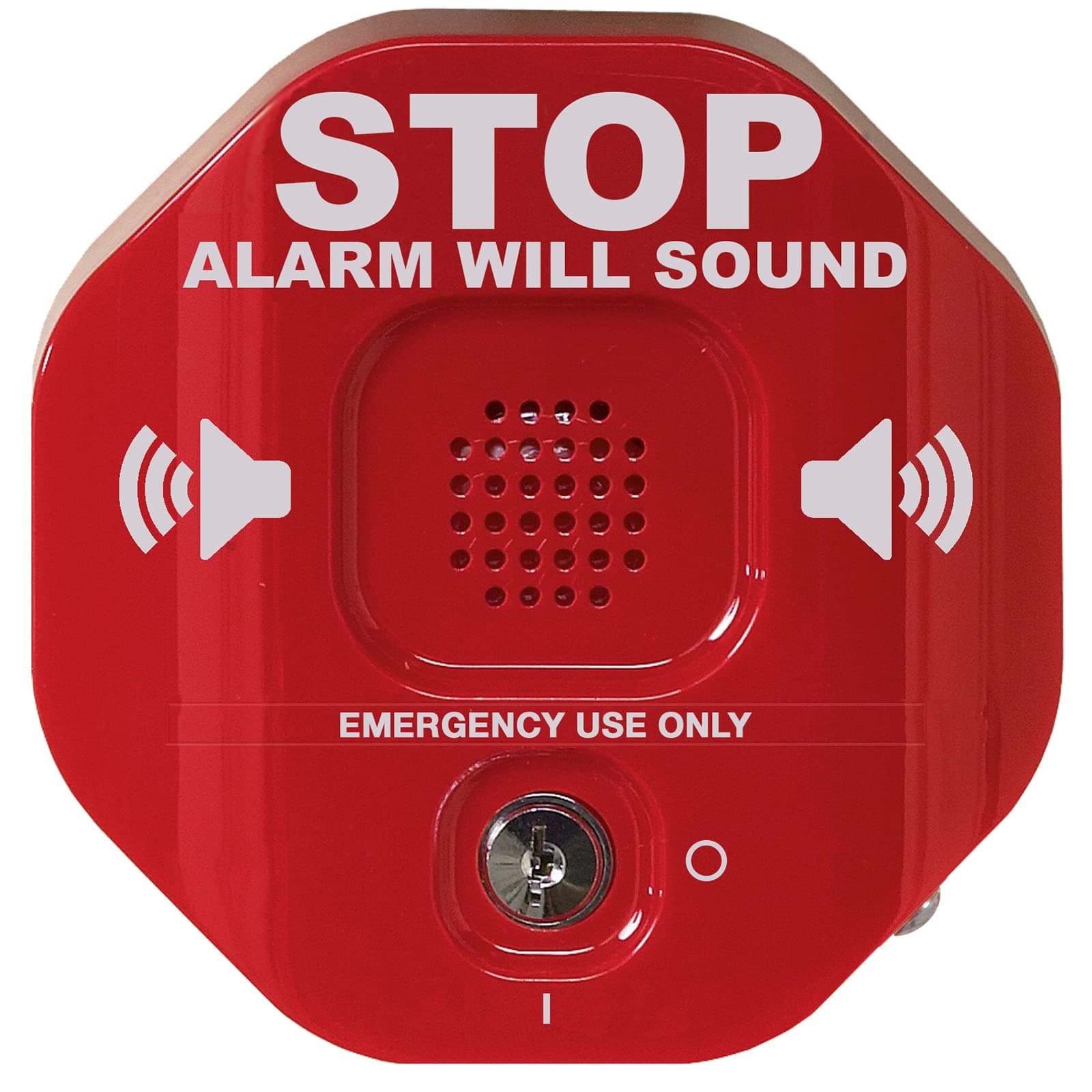

STI Safety Technology International, Inc. -6400 Exit Stopper Multifunction Door Alarm, Helps Prevent Unauthorized Exits or Entries Through Emergency Doors
